Rifle Heat Shield

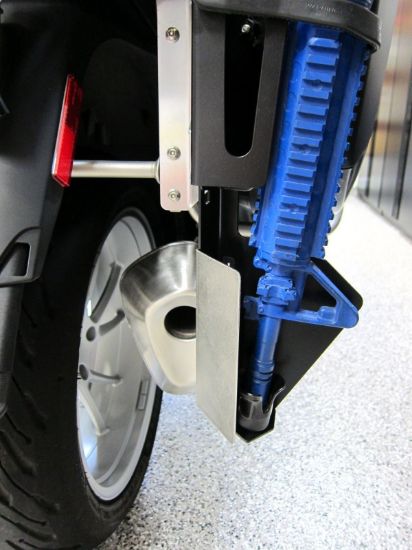

The rifle mount requires a mounting bracket. New R 1300 RT-P bracket for all barrel lengths now listed - RH side only! Though right side is normally the preferred side as it is the dismount side, a left side bracket is also available for specific models. Standard RH or LH brackets accommodate barrel lengths up to 14". The RH Long Rifle Mounting bracket accommodates barrel lengths up to 18" (note length includes barrel + suppressor if equipped). Note that using the Long Rifle Mounting bracket raises the rifle stock above the radio box lid height and may partially obstruct the RH side rear pod emergency light, depending upon view angle. Note when using RH long rifle mount w/long barrels, we suggest ordering the heat shield to protect the muzzle cup from excessive exhaust heat. LASO Bracket is a RH bracket, elevated similar to the RH Long, but for SBR rifles where no additional mount is required for the lower support. Use together with lower support / Std. muzzle cup w/heat shield. The Long rifle cable cover kit is recommended when using the RH Long Rifle Mount.

The FMS Accessories rifle mount has been further modified to work with the new R 1300 RT-P. The new version will also work retroactively with earlier RT-P models back to 2015. The rifle mount features an adjustable barrel support that will accommodate barrel lengths up to 14" with standard mounts and up to 18" with the RH Long mounting bracket. These lengths include overall barrel length including suppressor if appropriate. The mount comes complete with a Santa Cruz Gunlocks shielded SC-1 lock with CA round key, new anti-magnetic lock shield built into rifle mount, shielded black wiring harness terminated for the BMW gun lock release plug, mounting hardware and instructions. New lower support variants are available with integrated sight shield, no sight shield, offered with standard muzzle cup or large muzzle cup for use with suppressors. Large muzzle cup can accommodate a suppressor with an OD up to 1 7/8" (1.875"). New super-cool lower support with integrated small heat shield + std. muzzle cup for std. mounts + can be used on long rifle mounts with barrel length up to 14". Note: A mounting bracket must be purchased separately for Std. RH, RH Long or Std. LH mounting orientation. When mounting long barrel rifles on RH side, we suggest ordering the heat shield to protect the muzzle cup or lower support with integrated heat shield. Note: For 2019+ F-Series models, request 25" gun lock cable in Instruction box.

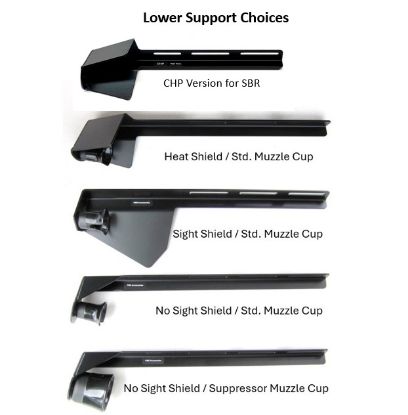

Replacement lower support arms for use on the FMS Accessories rifle mount. Select the lower support arm variant that matches your need. All support arms come with black powder coated finish and the noted muzzle cup installed. Reuse the mounting hardware from the existing rifle mount. Standard length of 17.5". Note: Special CHP 14" Support Arm not in photo.

BMW 2.5 mm high current plug to connect radios and other devices to the radio power plug on your BMW motor. BMW plug Code A (black housing) supplied with two sockets for 14 - 18 AWG wire connections (w/conductor & insulation crimps). Formerly BMW PN 71 60 2 452 887
