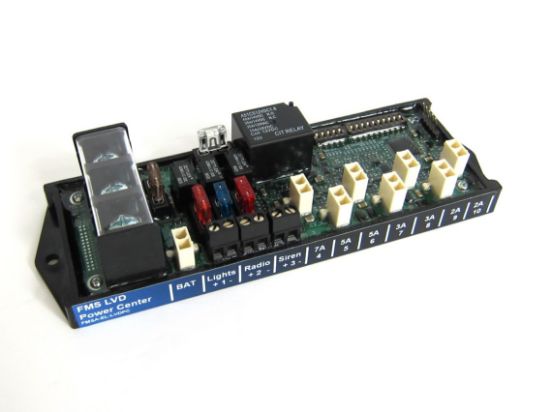

FMS LVD Power Center

$386.00
The FMS LVD Power Center provides a (Low Voltage Disconnect) connection bank for law enforcement / public service vehicles. The 50A Power Center provides separate managed power outlets for all standard authority functions for motorcycle / utility vehicle use. Each power output can be set to be powered either with ignition-ON, or continue to be powered for a specific time after ignition-OFF based on timer duration selected. The timer duration is adjustable in 15-minute increments up to 1.75 hours after ignition-OFF. One fused outlet is provided for direct battery connection (fused, no LVD or timed function), primarily for an external charging port. All other outlets are LVD managed, meaning that if the voltage in the battery(s) that the LVD Power Center is connected to drops below either 9V or 11V (selectable) for more than 30 seconds, the Power Center shuts down to protect the battery(s). Inputs are Bat +, Bat - and IGN. The IGN input is a voltage sensing input, so if no dedicated IGN input is available, you can connect items such as taillight or other accessories that are ON when the IGN is ON. Note that if a (starter) load-shedding power source is used, the non-timer selected outputs will be off when the starter is activated. All outputs have either a selectable ATM fuse (up to 15A) or are load managed circuit, with a variety of load choices. 3-15A outputs (emergency lighting, siren, mobile radio), 7 load managed outputs 1-7A, 2-5A, 2-3A, 2-2A (radar, Set-Com/PVP, PC charger, video, BT amp, etc.) plus the BAT direct connection (suggest 5A for battery charger / power outlet). The 10 outlets that can be time managed are selected via a 1-10 DIP switch. This feature enables you to select the proper output based on load rating, then decide with each output whether you want it time managed or not. Outputs 1-3 are higher-current and use a set-screw wire connection. Outputs 4-10 and BAT use the 2-conductor accessory connection plugs provided (FMSA-EL-ACP).
Availability: In stock
SKU: FMSA-EL-LVDPC

Add To Estimate

The timer is activated for each output selected via DIP switch when the ignition is turned ON and has the following features:

1. Selectable run-time after ignition OFF in 15 minute increments. Activate any or all of the DIP switches to total the amount of time you wish the LVD Power Center outputs to stay ON after ignition OFF.  Example: DIP #1 ON + #2 ON = 45 minute run-time after ignition OFF.
2. LVD low voltage disconnect protection to save battery from severe discharge. The LVD Power Center is programmed to shut-down when the voltage drops below 9v or 11v for more than 30 seconds regardless of remaining run-time, so that battery is not deep discharged which can otherwise permanently damage the battery. DIP switch #4 selectable for either 9v OFF or 11v ON. 9v for auxiliary batteries, 11v for primary batteries where MC restarting is required.
3. An LED indicator shows steady when IGN ON, blinks after ignition-OFF to indicate run-time count-down function.  Additional blinking codes provide information on diagnostics for a load managed output that shuts-down from excessive load.
4. The LVD Power Center can be secured with screws through the holes provided (6.75" on center), or by using high quality Velcro.
5. The LVD Power Center is potted to protect from weather, vibration and shock.

Made in USA exclusively for FMS Solutions, LLC

Load Management:  Four up to 15A ATM fuses, 7 load-managed electronic circuit breaker, which will recycle every 30 seconds after tripping or once the overload condition is removed / disconnected.

LED Indicator Light:  On steady when IGN power is ON, slow flashing when timer is counting down, fast-blinking the connector number when that circuit is shut-down due to overload / short circuit.

Parasitic Load:  The LVD Power Center direct connection to the motorcycle battery has minimal parasitic load (less than .05 mA) when OFF, so the battery will not discharge noticeably when parked - even for long periods.
