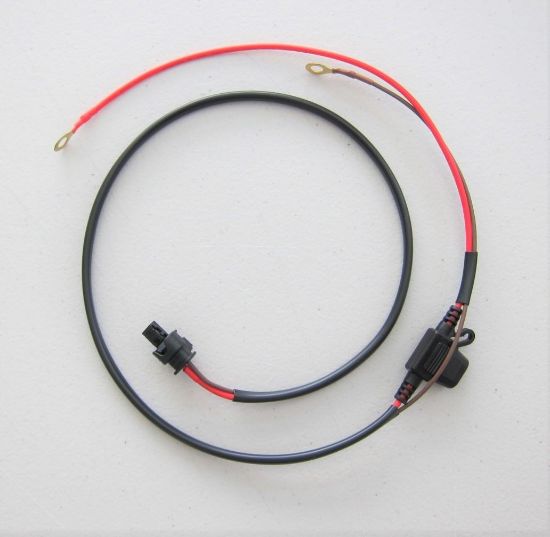

Front Fused Power Socket Harness

$33.00

Power your BMW accessory socket directly from the main motorcycle battery with this accessory cable. Fused at 10A (std. power socket is 5A), the cable can be used with heated clothing, etc. Additionally, provides a direct path for battery charging (by-passing the buss system) if the BMW charger is not used (note: direct charging then only charges the main battery and does not close the charging relay to charge the auxiliary battery). Connects directly to main battery (where fuse is located) and runs up to the RH knee panel area for connection to the BMW power socket. Formerly BMW PN 71 60 2 409 958

Availability: In stock

SKU: FMSA-EL-FFH

Qty:

Add To Estimate

Important Note: Beginning with the 2021 model RT-P, only the front socket is linked via the buss for charging both batteries, so it is important to retain the factory socket connection. Use this cable to add an additional socket if needed and relocate the factory charging outlet to retain the ability to charge both batteries at once.

Connects directly to main battery (where fuse is located) and runs up to the RH knee panel area for connection to the BMW power socket.

Free shipping is limited to the continental United States.

Shipping charges apply to international shipments.

Customers who bought this item also bought

Fairing Waterproof Lighter Socket

FMSA-EA-LSF

Lighter outlets are commonly installed on motor fairings to assist officers with powering various devices (also see USB outlet w/voltmeter and ON-OFF switch). Located on the RH side of the fairing above the BMW power socket, the lighter socket shares the connection to the BMW/Hirschmann connectors for the accessory power socket via a special "Y" harness. It is not recommended to use USB adapters with the lighter socket unless they are removed after use (they sometimes confuse the circuit which does not shut-down properly after ignition-OFF). Also make sure to remove any adapters prior to utilizing the BMW battery charger for the same reason. Formerly BMW PN 71 60 2 407 785

$45.00

Accessory I-III Connection Plugs

FMSA-EL-ACP

Accessory connection plugs are used to connect accessories to the two-conductor plugs on the radio box terminal strip in positions 8, 9 and 10, referred in the BMW instructions as Accessory I, II or III. Three (3) two conductor socket housings along with six sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 846

$9.50

Speaker Connection Plugs

FMSA-EL-SCP

The radio speaker plug is used to connect radio speaker outputs to the six-conductor plug on the radio box terminal strip in position 12, referred in the BMW instructions as Fairing Speakers. One six conductor socket housings along with six sockets are provided with each PN quantity selected. Formerly BMW PN 71 60 2 452 844

$9.50

Fairing USB Outlet w/ Voltmeter & On-Off Switch

FMSA-EA-USB

USB sockets are becoming more commonly installed on motor fairings to assist officers with charging cell phones, helmet headsets, etc. However, many of the available sockets when connected to the fairing power socket confuse the BMW 2.5Ah battery charger by creating a small parasitic load. FMS has sourced a New quick-charge 3.0 technology USB socket (type A and C) with an On-Off switch, enabling the officer to turn-off the socket when not in use, therefore not creating issues during battery charging (particularly off-season storage when connected to the fairing power socket outlet). Additionally, the USB has a digital voltmeter, enabling the rider to see the state-of-charge of the battery that the voltmeter is connected to (based on the connection type selected). The voltmeter is also visible through the waterproof cover. When connected to the auxiliary battery power source, the voltmeter provides an excellent indication of your auxiliary battery state-of-charge as well as when the motorcycle is charging the aux. battery. Formerly BMW PN 71 60 2 446 871

$25.00
